What is vacuum casting?
Vacuum casting is a versatile and cost-effective manufacturing process that is ideal for creating high-quality prototypes and low-volume production runs of plastic and metal parts. It uses a vacuum to remove air from a mold, which allows the liquid resin or metal to flow into the mold cavity and create a precise and bubble-free casting.

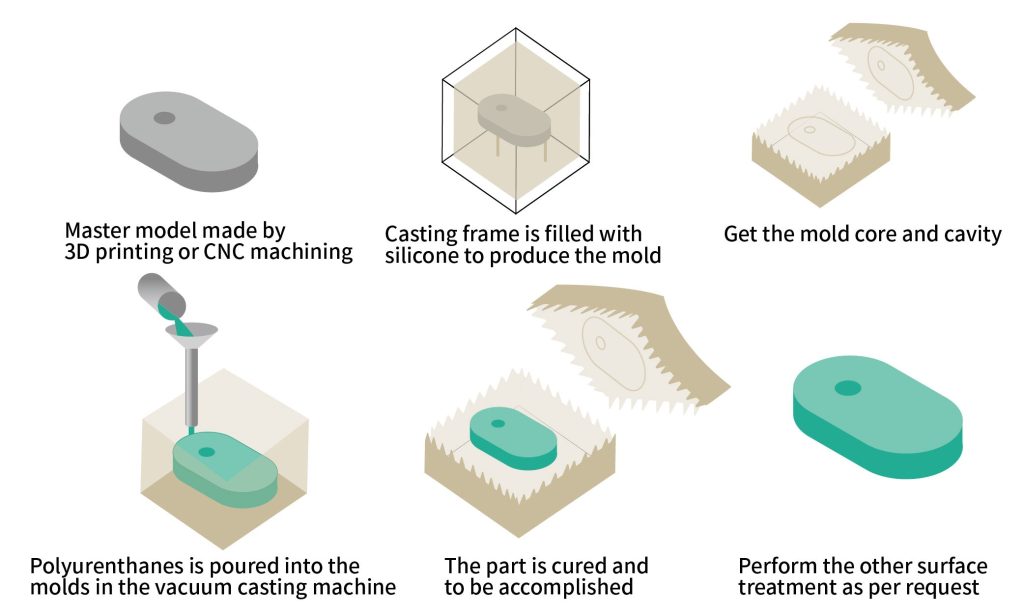

How vacuum casting works.
The vacuum casting process typically involves the following steps:
- Create a master pattern: The first step is to create a master pattern of the part you want to cast. This can be done using building a master model using 3D printing (via SLA or SLS) or CNC machining.
- Create a mold: A mold is then created from the master pattern. Silicone is the most common material used for vacuum casting molds because it is flexible, durable, and heat-resistant.
- Degas the mold: The mold is placed in a vacuum chamber and degassed to remove any air or moisture that could be trapped in the mold and create imperfections in the casting.
- Pour the resin or metal: The liquid resin or metal is poured into the degassed mold. The vacuum helps to draw the liquid into the mold cavity and ensures that there are no air bubbles.
- Cure the resin or metal: The resin or metal is allowed to cure or solidify. The curing time will vary depending on the material used.
- Demold the part: Once the resin or metal has cured, the part is removed from the mold.
- Finishing: The part may then be finished with additional processes, such as sanding, painting, or plating.
Benefits of Vacuum Casting
Vacuum casting offers several advantages over other manufacturing processes, including:
High Quality
- Produces detailed and accurate parts
Fast Turnaround Times
- Ideal for prototyping and low-volume production
Cost-Effective
- More affordable than injection molding for small runs
Wide Range of Materials
- Compatible with plastics, metals, and resins
Design Flexibility
- Easily casts complex shapes and geometries
Applications of Vacuum Casting
Vacuum casting is used in a variety of industries, including:
Automotive
- Produces prototypes and low-volume parts for cars, trucks, and motorcycles
Aerospace
- Creates lightweight and durable components for aircraft and spacecraft
Electronic and Consumer Goods
- Manufactures toys, electronics, medical devices, and equipment
Home Decor and Luxury Items
- Crafts high-quality decorative pieces
Limitations of vacuum casting
Despite all its advantages, this process has several limitations that should be considered before starting a project:
Material Restrictions
- Suitable only for specific materials
Prototype Quality
- Affected by the type of mold used
Shrinkage Issues
- Parts may become too thin or too thick
Production Speed
- Relatively slow, not ideal for large-scale production
Temperature Limitations
- Not suitable for high-temperature applications
