Fused Deposition Modelling
We offer rapid turnaround for high-quality thermoplastic parts designed for commercial and industrial applications using FDM technology. Our services cater to your functional production or prototyping needs, providing a variety of materials from basic to engineering-grade.

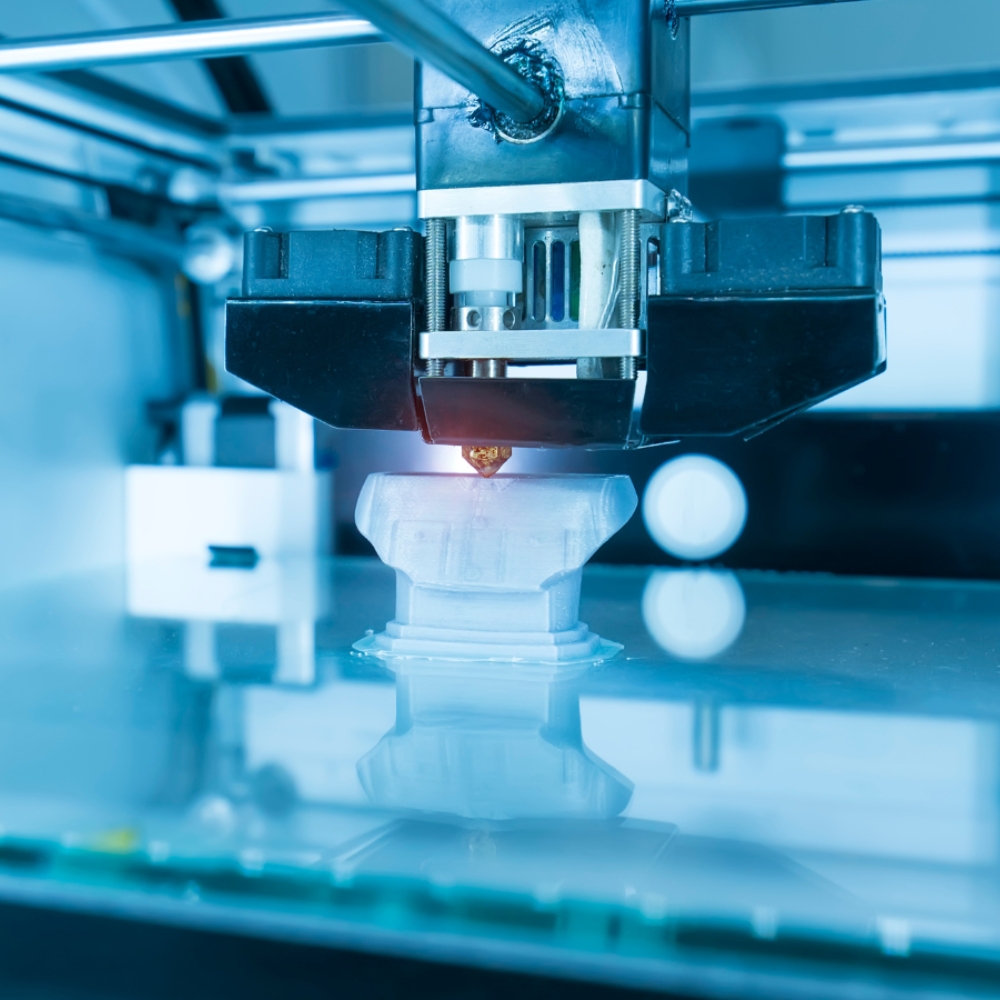

Manufacturing with FDM 3D printing
FDM also known as Fused Deposition Modelling creates custom parts by heating and extruding thermoplastics layer-by-layer. It’s additive nature and soluble support material simplify the creation of parts with complex geometries and internal cavities. FDM thermoplastics also deliver the necessary properties for applications that demand precise tolerances, durability, and stability in different environments. They include many of the same thermoplastics used in traditional manufacturing processes like injection moulding. It is suitable for both initial and functional prototyping, as well as low-volume production, offering a variety of strong plastic materials from basic to engineering specification materials such as PLA, ABS, ASA, PC, TPU and PETG. While FDM is the most economical 3D printing technology, it goes beyond small-scale manufacturing.
FDM 3D printing is suitable for :
- Rapid prototyping for designs verification
- Functional testing of parts
- Low-volume production of end-use components
- Customized manufacturing with various plastic materials
- Production aids like jig & fixture
| Prototyping | Industrial | |
|---|---|---|
| Material | General | PEEK, Nylon, ULTEM |
| Maximum build size | W500 x L500 x H500 mm | W300 x L300 x H400 mm |
| Best lead time | 1 day | 3 days |
| Dimensional accuracy | ± 0.3 mm | with a lower limit of ± 0.25 mm |
| Layer height | 100-300 μm | 100-300 μm |
| Infill | 15-80% | Solid Infill, Light Infill, Ultralight Infill, Customized infill |
Our capabilities
We categorized it into two distinct classes: prototyping and industrial. Each class has specific capabilities that cater to different needs.
Prototyping FDM:
- Ideal for quick and cost-effective prototyping
- Suitable for testing designs and concepts
- Offers a range of material options, including basic and engineering-grade thermoplastics
Industrial FDM:
- Geared towards producing end-use parts
- Provides high strength, durability and thermal resistance
- Excels in producing functional components with various engineering-grade materials
Options for infill
We offer a few types of infill options with their properties : 10%, 15%, 20%, 40%, and 100%
We help you determine the best option infill options for the product.
-
Solid infill:
Parts are completely filled for the highest density. This is the heaviest and more expensive option but offers the highest strength. -
Light infill:
Parts are filled with a grid pattern, providing increased rigidity and being lighter than a complete solid infill. -
Ultralight infill:
Parts are filled with a grid pattern, making it the lightest and least expensive infill option. -
Customized infill:
Parts are filled with different patterns at specific desired location.
Available FDM materials
PLA
ABS
PETG
TPU
PC (Polycarbonate)
PP (Polypropylene)
ASA
HIPS
Nylon/ PA12
Flame retardant UL 94-V0
ESD
PEI
PLA-CF
PAHT-CF
PET-CF
PEEK
ULTEM 9085
ULTEM 1010
Comparison of 3D Printing Processes
 |  |  | |
|---|---|---|---|
| 3D Printing Technology | FDM | SLA | SLS |
| Resolution | ★★★☆☆ | ★★★★★ | ★★★★☆ |
| Accuracy | ★★★★☆ | ★★★★★ | ★★★★★ |
| Surface Finish | ★★★★☆ | ★★★★★ | ★★★★☆ |
| Complex Designs | ★★★☆☆ | ★★★★☆ | ★★★★★ |
| Ease of Use | ★★★★★ | ★★★★☆ | ★★★★☆ |
| Various Materials | ★★★★★ | ★★★☆☆ | ★☆☆☆☆ |
| Applications |
|
|
|
Our competencies
We are a highly dependable mechanical powerhouse with an extensive array of additive & subtractive manufacturing capabilities. Catering from one-off prototyping to low-volume production, we offer solutions that span from basic to industrial, including cosmetic finishing manufacturing.
3D Printing
SLS,SLA,SLM,FDM,MJF,PµSL
- Tolerances accuracy ± 0.02 mm
- Tolerances accuracy ± 0.20 mm
- Class 1 surface finishing
- Engineering grade material
Laser Cutting
CO2 Laser
- Bending, welding
- Stainless steel, aluminium
- Thermoplastic, tapes & gaskets
- Cutting, boring, engraving, etching
Vacuum Casting
Urethane Casting
- Material flexibility
- High transparency
- Production-like parts
CNC Machining
Milling, Turning
- Tolerances down to ± 0.03 mm
- 3 & 5 axis
- Anodizing, powder coating
- Wide range of material
Start your next project with us today
Manufacturing limitless possibilities with industrial fabrication solutions.
Fused Deposition Modeling (FDM) Capabilities
FDM 3D printing is categorized into two distinct classes: prototyping and industrial. Each class has specific capabilities that cater to different needs.
| Prototyping FDM | Industrial FDM | |
|---|---|---|
| Maximum build size | 250 x 250 x 250 mm | 500 x 500 x 500 mm |
| Standard lead time | From 1 business day | From 3 business days |
| Dimensional accuracy | with a lower limit of ± 0.3 mm | with a lower limit of ± 0.3 mm |
| Layer height | 100-300 μm | 100-300 μm |
| Infill | 15-80% | Solid Infill, Light Infill, Ultralight Infill |
Materials available for FDM 3D printing

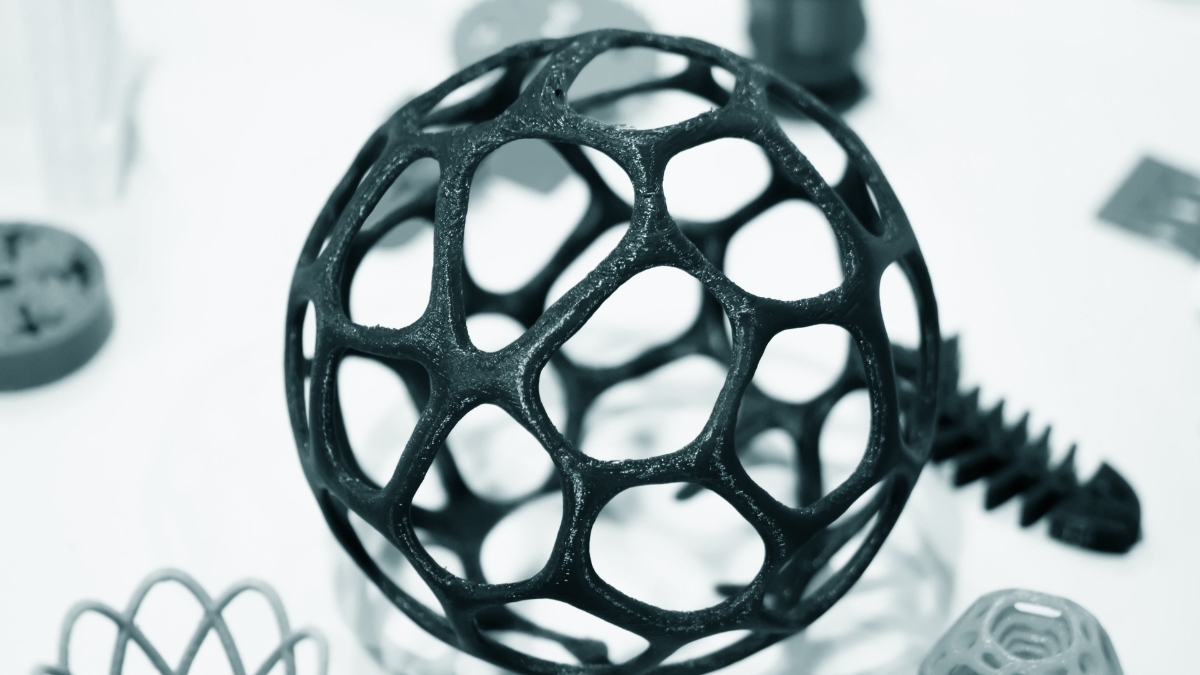

Prototyping FDM materials
Ideal for fast and affordable rapid prototyping and modeling.
Prototyping PLA
Prototyping PETG
Prototyping ASA
Prototyping ABS
Prototyping TPU

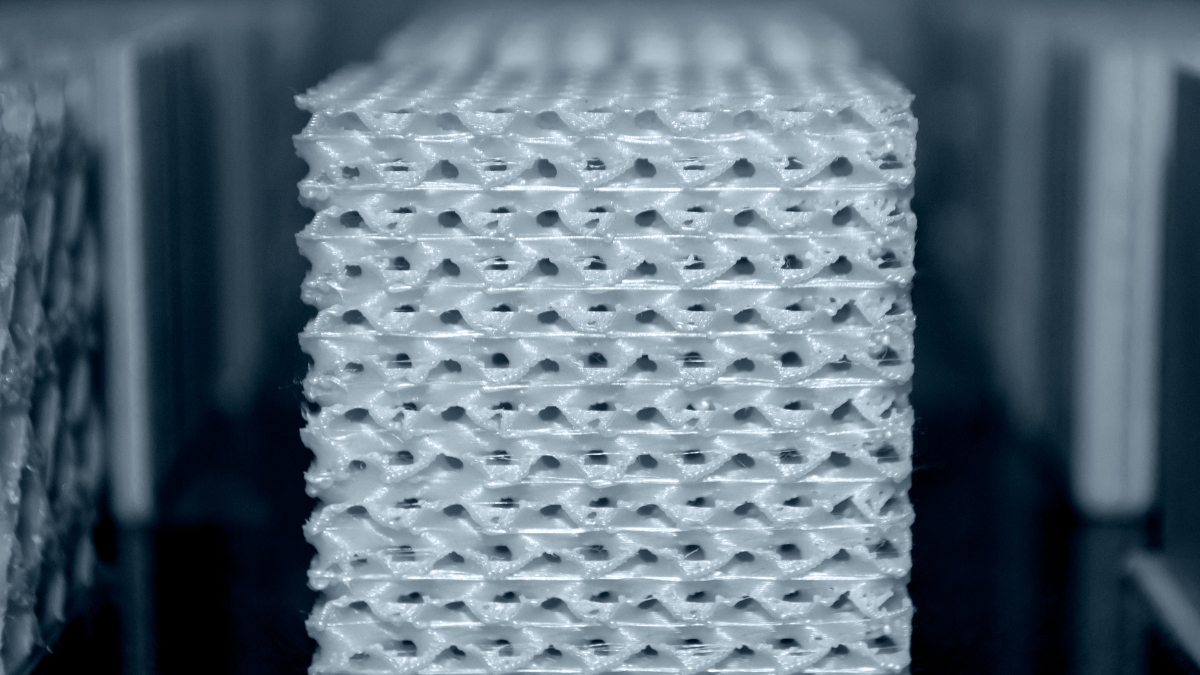

Industrial FDM materials
Ideal for higher-volume production and bigger parts with better mechanical properties.
Nylon: Markforged Onyx
PEI: ULTEM 9085, ULTEM 1010
ASA: Stratasys ASA
ABS: ABS M30, ABSplus
